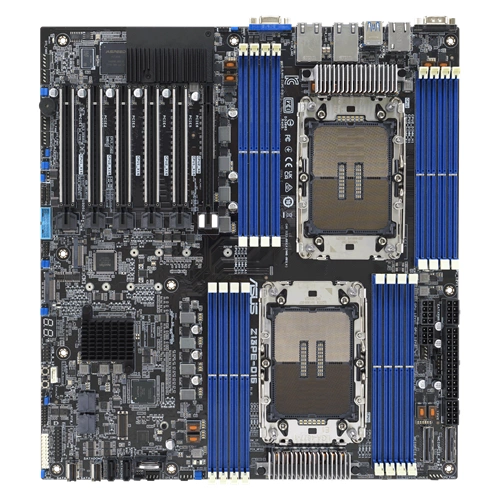

Motherboard ASUS Z13PE-D16/ASMB11 LGA4677 E-ATX | 90SB0CA0-M0UAY1
- Motherboard ASUS Z13PE-D16/ASMB11 Intel C741 | Warranty 3 year
ManufacturerASUS
Part number90SB0CA0-M0UAY1
Model NumberZ13PE-D16/ASMB11
Product typeMotherboard
CPU manufacturerIntel
Servers - Ask a question about a product you are interested in
Manufacturer
ASUS
Part number
90SB0CA0-M0UAY1
Model Number
Z13PE-D16/ASMB11
Product type
Motherboard
CPU manufacturer
Intel
CPU Socket
LGA4677
Number of CPU slots
2
Supported CPU
5th Gen Intel Xeon Scalable
Chipset
Intel C741
Memory Expansion Slots / Banks (Server)
16
Memory slots per CPU
8
Maximum supported memory
2048GB
RAM Memory frequency
4800MHz
5600MHz
Expansion slots
6
Storage options
2x M.2
10x SATA
Network connectivity
2 x 10GbE LAN ports (RJ45, Intel X710-AT2)
Graphics Card
ASPEED AST2600
Graphics card memory
64MB
On Board I/O
1 x Onboard header for optional management card
2 x Slimline SAS connector
2 x SATA connector
2 x MCIO connector
2 x M.2 Connector
1 x Chassis Intruder
1 x SMBus
8 x Fan Header, 4pin
1 x USB 2.0 header
1 x USB3.2 Gen1 header
3 x PSU Power Connector (1 x 24-pin ATX power connector + 2 x 8-pin ATX 12V power connector)
1 x TPM header
Back I/O Ports
1 x Mgmt Port
2 x 10GbE LAN ports (RJ45, Intel X710-AT2)
1 x VGA Port
1 x Serial Port
2 x USB3.2 Gen1 ports
Form factor [eng]
E-ATX
Warranty
3 year
Condition
new
Ask for this product
