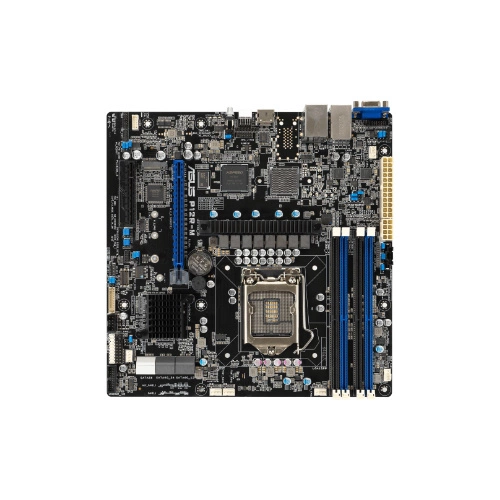

Motherboard ASUS P12R-M LGA1200 micro ATX | 90SB09X0-M1UAY0
- Motherboard ASUS P12R-M Intel C252 | Warranty 3 year
ManufacturerASUS
Part number90SB09X0-M1UAY0
Model NumberP12R-M
Product typeMotherboard
CPU manufacturerIntel
Servers - Ask a question about a product you are interested in
Manufacturer
ASUS
Part number
90SB09X0-M1UAY0
Model Number
P12R-M
Product type
Motherboard
CPU manufacturer
Intel
CPU Socket
LGA1200
Number of CPU slots
1
Supported CPU
Intel Xeon E Family
Intel Pentium Family
Chipset
Intel C252
Memory Expansion Slots / Banks (Server)
4
Memory slots per CPU
4
Type of memory
DDR4
Maximum supported memory
128GB ECC
RAM Memory frequency
2666MHz
2933MHz
3200MHz
Expansion slots
1x PCI-E x16 (Gen4, x16 link)
1x PCI-E x8 (Gen4, x4 link)
Storage options
1x M.2
6x SATA 6Gb/s
Network connectivity
1x Mgmt LAN
2x Intel I210-AT GbE
Graphics Card
ASPEED AST2600
Graphics card memory
64MB
On Board I/O
1x Onboard header
1x VGA
1x M.2
4x Front LAN LED
1x Chassis Intruder
1x SMBus
6x Fan Header (4-pin)
1x USB 2.0 pin header
1x USB 3.2 Gen 1 header
2x USB 3.2 Gen 2
1x 8-pin ATX 12V
1x 24-pin ATX
1x TPM

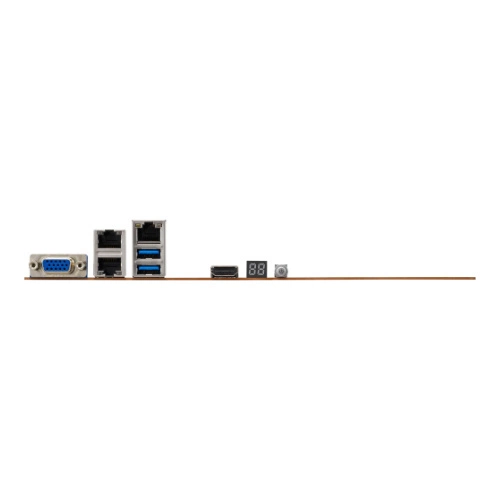

Back I/O Ports
1x Mgmt LAN
2x RJ-45
1x VGA
1x HDMI
2x USB 3.2 Gen 2
Form factor [eng]
micro ATX
Warranty
3 year
Condition
new
